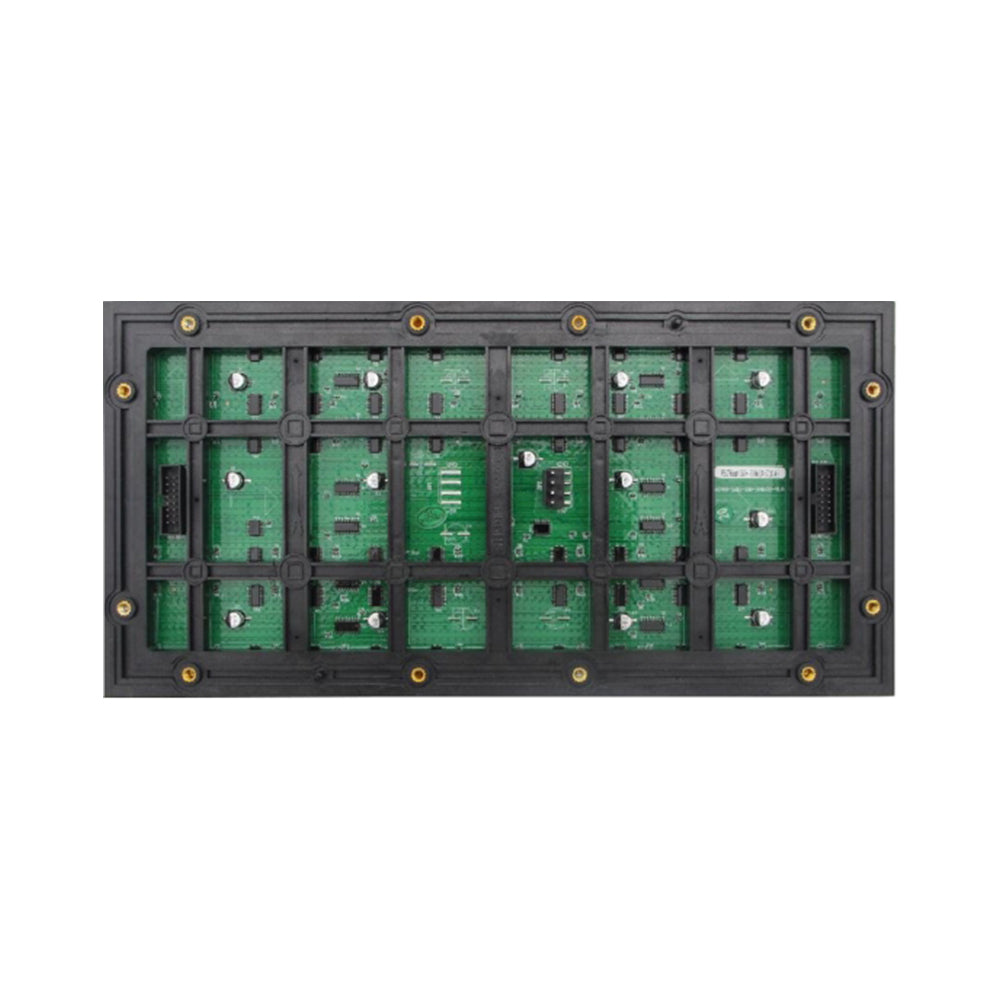

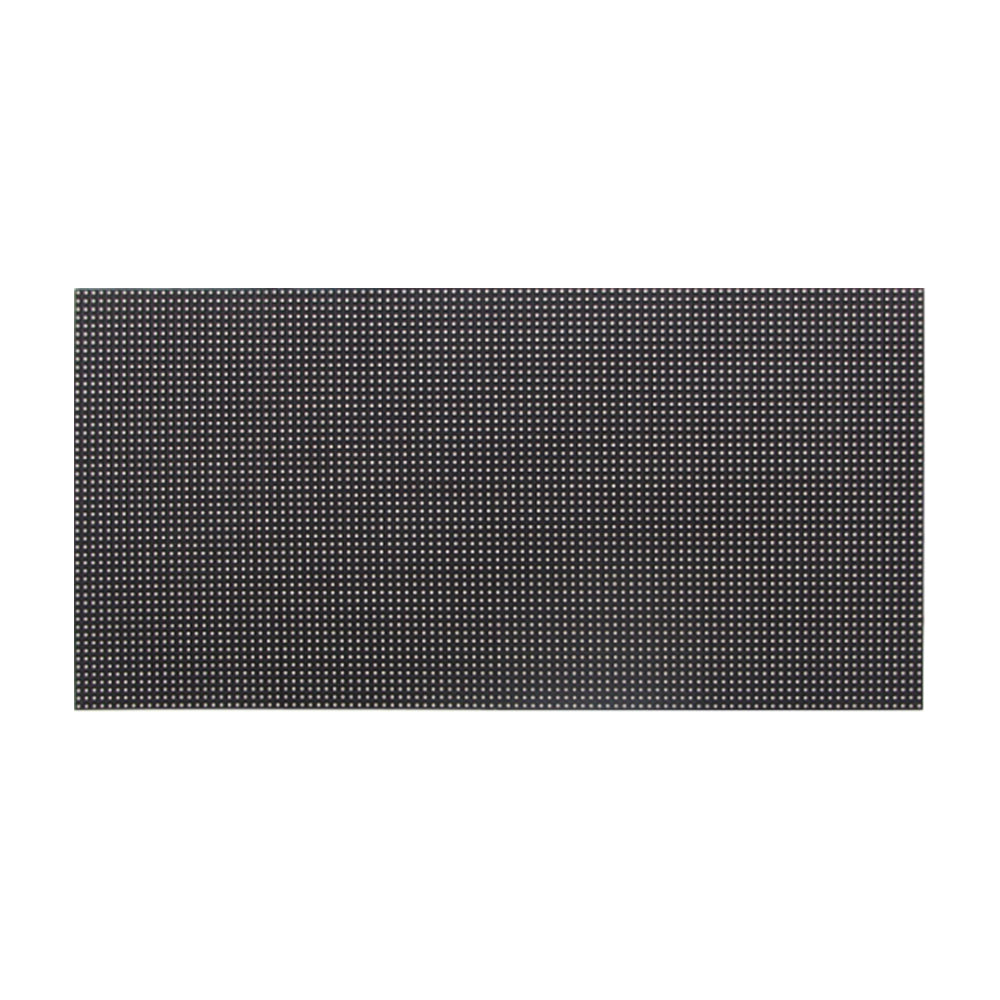

P3.076 Outdoor Full-Color LED Display Module
The P3.076 Outdoor Full-Color LED Display Module (SMD1415, 320×160mm) is engineered for high-definition outdoor commercial advertising, architectural media facades, sports stadiums, and transportation hubs. Designed with premium SMD1415 LEDs, robust IP65 waterproof protection, and high brightness exceeding 4,500 nits, it delivers crisp, vivid imagery even under direct sunlight.
Key Features
- Ultra-High Brightness (4,500+ nits): Ensures crystal-clear visibility and vibrant color contrast in direct outdoor sunlight.
- High Refresh Rate (≥1920Hz / 3840Hz): Smooth, flicker-free visual performance, ideal for live video streaming and photography.
- All-Weather IP65 Protection: Dust-proof, waterproof, and UV-resistant front mask protects against harsh weather conditions (-20°C to +60°C).

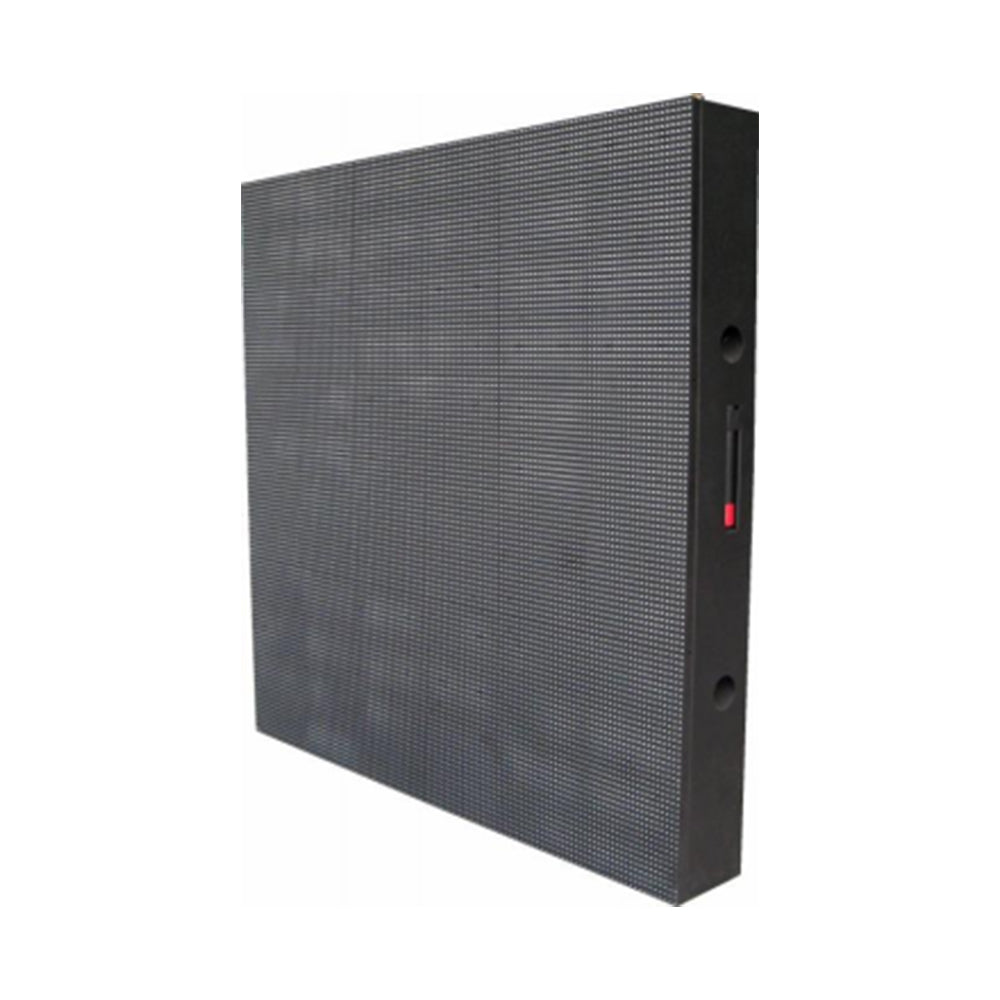

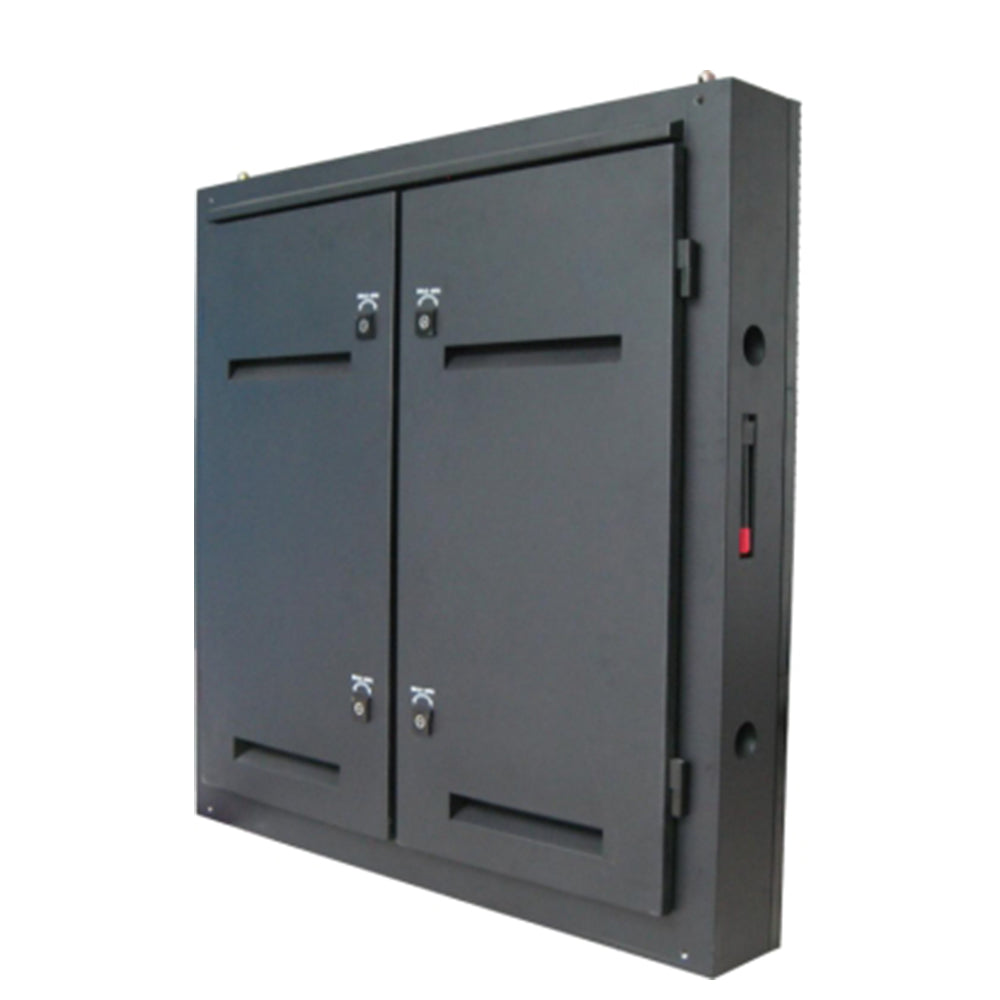

- Standard 320×160mm Form Factor: Universal module sizing enables fast assembly, easy retrofitting, and standardized 960×960mm cabinet integration.
- Ultra-Wide Viewing Angle: Horizontal >170° and Vertical >120° for broad audience coverage without color distortion.
- Low Power & Superior Heat Dissipation: Efficient constant current driver reduces power consumption and extends diode lifespan up to 100,000 hours.
- Flexible Control Options: Compatible with NovaStar, Colorlight, and Linsn systems supporting HDMI, DVI, Wi-Fi, 4G, and cloud broadcasting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | P3.076-1415-13S-320X160mm |
| Pixel Pitch | 3.076 mm |
| Module Dimensions | 320 mm (W) × 160 mm (H) |
| Module Resolution | 104 × 52 dots |
| Pixel Density | 105,688 dots/m² |
| Pixel Configuration | 1R1G1B (SMD1415) |
| Drive IC & Scan Mode | 2038S Constant Current, 1/13 Scan |
| Brightness | ≥ 4,500 cd/m² (nits) |
| Refresh Rate | ≥ 1,920 Hz / 3,840 Hz |
| Display Colors | 4096 × 4096 × 4096 (68.7 Billion Colors) |
| Viewing Angle | Horizontal > 170° / Vertical > 120° |
| Optimal Viewing Distance | 5 m – 30 m |
| Module Interface | HUB75 |
| Module Weight | 0.40 kg |
| Module Input Power | 5V DC / 8A (Avg. 16W per module) |
| Screen Power Consumption | Avg: 350 W/m² | Max: < 1,000 W/m² |
| Ingress Protection | IP65 (Waterproof & Dustproof Front) |
| Operating Temperature & Humidity | -20°C to +60°C / 10% – 95% RH |
| Lifespan | ≥ 100,000 Hours |
Packaging Details
| Packaging Parameter | Details |
|---|---|
| Packaging Type | Reinforced carton with protective corner guards and pearl cotton padding |
| Quantity per Carton | 40 pcs / carton |
| Carton Dimensions | 575 mm × 370 mm × 395 mm |
| Gross Weight per Carton | 19.7 kg |
Applications
Ideal for outdoor commercial advertising billboards, roadside displays, stadium perimeters, shopping center facades, digital transit signs, and municipal public information screens.
